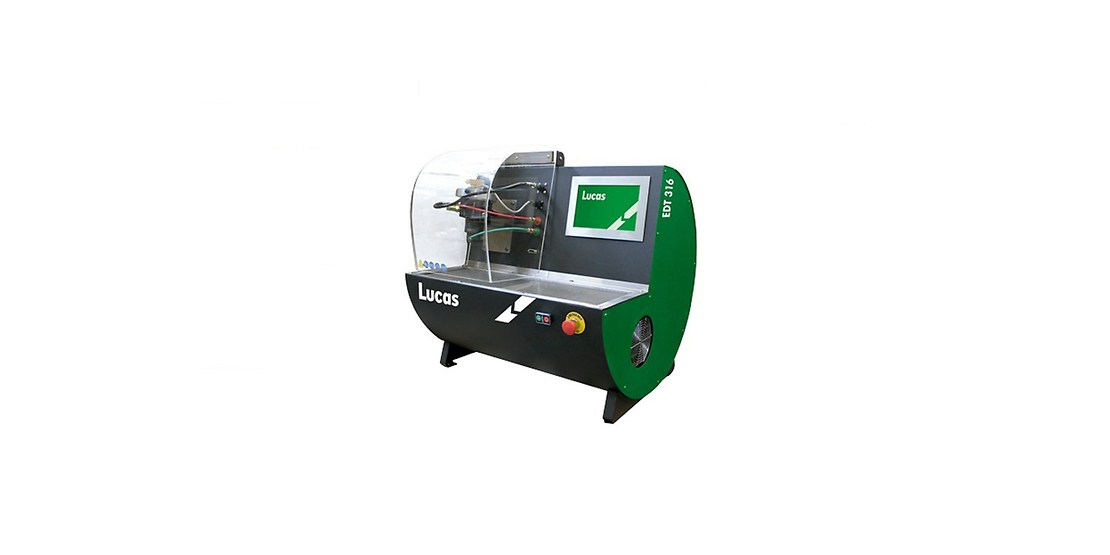

Specialized test bench for diesel HEUI injectors of all brands
Multibrand Testing
Diesel HEUI injectors
Our HEUI Tester is easy-to-use at every stage of the job so any technician, even if new to HEUI technology, can test these injectors properly, with the added benefit of having the latest settings readily available for the next generation as injectors evolve.
1 EQUIPMENT COMPOSITION
EDT 316 - LDFT1192
EQUIPMENT
REF.
| LDFT1193 | ADAPTER FOR HEUI CAT C7 – C9 INJECTOR |
| LDFT1194 | ADAPTER FOR HEUI CAT (Ø 7 – Ø 8.5) INJECTOR |
| LDFT1195 | PLEXIGLAS |
ACCESSORIES
REF.
| LDFT1196 | PIEZO ADAPTER |
2 TECHNICAL SPECIFICATIONS
EDT 316 - LDFT1192
DRIVE SYSTEM
| MOTOR | 3 PHASE 400 VAC or 220 VAC 50/60 HZ, 16 A |
| POWER | 5 kW |
MEASUREMENT SYSTEM
| MEASUREMENT SYSTEM | Tolerance repeatability 1%l |
| TECHNOLOGY |
Electronic measurement of quantities Precise measuring technology Volume measurement in mm3/pulse |
FEED SYSTEM
| OIL TANK | 22 l |
| REFRIGERATION | Built-in cooling system – no water required |
| PRESSURE CONTROL |
Operating pressure adjustable from: 20 to 300 bar Injected fuel pressure check: Set to 3 bar The pressure is measured digitally and displayed on the tablet |
| FILTRATION | Capacity up to 5μ |
COMPUTING SYSTEM
| OPERATING SYSTEM | Microsoft Windows 10 |
| SOFTWARE | HEUI intelligent software installed |
| SCREEN | High Performance 10.1’ Tablet |
| MENU | Interactive, multi-language, easy-to-use |
| CONNECTIONS | WI-FI, Bluetooth connection and microSD, HDMI |
| SUPPORT | Remote TeamViewer, Skype & WhatsApp support and assistance |
OPERATION SYSTEM
- Quick clamping, ergonomic, strong and simple
- Pulse amplitude: 50 – 12000 μs
- Pressure generated by one CP3 Injection pump
- Test program selection: Automatic/Semiautomatic/Manual/Mixed
PERFORMANCE
- Number of injections measured at:
-
- Min. load
- Max. load
- Poppet valve leak test
- Coil diagnostics (with graph)
- Print final or intermediate reports
- Check response time (Optional)
DIMENSIONS
| HEIGHT | 840 mm |
| WIDTH | 800 mm |
| DEPTH | 755 mm |
| VOLUME | 1.2 m3 |
| WEIGHT | 170 kg |
| SAFETY DOOR |
Protective Plexiglas movable spray guard Motor shuts down immediately as soon as Plexiglas guard is opened |
INFORMATION SYSTEMS
| MULTIBRAND | All brands |
| TEST RECORDS |
Print report with easily understandable reference values Create and save custom Test Plans using the create Test Plan function |
| SETTINGS | Personalised data tables |
| UPDATING | Periodic updates |
| DATABASE |
OE & custom for all makes Caterpillar 3126A 7.2L Caterpillar 3126B 7.2L Caterpillar C7 7.2L Caterpillar C9 8.8L |
APPLICATIONS
- CARS
- LIGHT COMMERCIAL
- HEAVY COMMERCIAL
- AGRICULTURAL
