Product Information

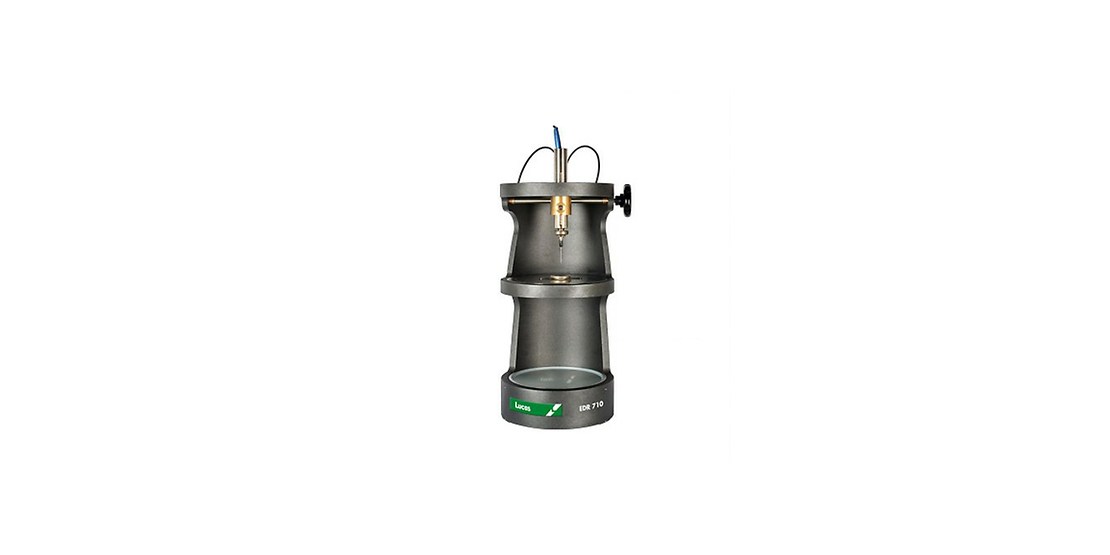

Mini semi-automatic calibration robot for all brands of diesel injectors
- Common rail injectors
- Common rail piezo injectors
- HEUI injectors
The technological design of the EDR 710 mini calibration robot enables precise semi-automatic adjustment of any semi-automatic adjustment BOSCH, VDO, DENSO and CAT Common Rail injector.
Thanks to the ongoing development of new configuration records for all of the systems and to the generation of new accessories, the EDR 710 is equipped to meet any market requirements.
1 EQUIPMENT COMPOSITION
EDR 710 - LDFT0011
EQUIPMENT
REF.
|
LDFT1126 |
AIR PRESSURE REGULATOR FILTER |
| LDFT1127 | ADAPTOR EXHIBITOR |
| LDFT1128 | CALIBRATION ADAPTOR (KD-022) |
| LDFT1129 | APP FOR BOSCH CRI & CRIN INJECTORS |
| LDFT1130 | PC USB CONNECTION CABLE |
| LDFT1131 | POWER SUPPLY CABLE |
| LDFT1132 | SOFTWARE |
ACCESSORIES
REF.
|
LDFT0376 |
SIEMENS INJECTORS APP |
|
LDFT0375 |
DENSO INJECTORS APP |
| LDFT1134 | 6.4/6.6 PERKINS-CAT INJECTORS APP |
| LDFT0379 | CR INJECTORS SPRING GAUGE |
| LDFT0377 | HEUI C7 – C9 CAT – FORD INJECTORS APP |
2 TECHNICAL SPECIFICATIONS
EDR 710 - LDFT0011
DRIVE SYSTEM
| MOTOR | SINGLE PHASE 220 VAC |
| POWER | 70 kW |
| FREQUENCY | 50/60 Hz |
INFORMATION SYSTEMS
| PRECISION |
|
|
PRESSURE |
Requires 2 bars of air pressure |
| TIME | All measurements in 7 minutes |
| THICKNESS MEASUREMEN |
|
IT SYSTEM
| OPERATING SYSTEM | PC not included |
| SOFTWARE |
|
DIMENSIONS
| HEIGHT | 87 mm |
| WIDTH | 54 mm |
| DEPTH | 47 mm |
| VOLUME | 0.2 m3 |
| WEIGHT | 75 kg |
| BODY CONSTRUCTION | Iron |
INFORMATION SYSTEMS
| MULTIBRAND | All brands |
|
TEST RECORDS |
|
| UPDATING | Permanent over the internet |
| SOURCES | Original specifications of the automobile manufacturers |
| WORK PROGRAMME |
|
| INFORMATION |
|
APPLICATIONS
- CARS
- LIGHT COMMERCIAL
- HEAVY COMMERCIAL
- AGRICULTURAL
