Product Information
Automatic calibration robot for all brands of diesel injectors
- Common rail injectors
- Common rail piezo injectors
- HEUI injectors

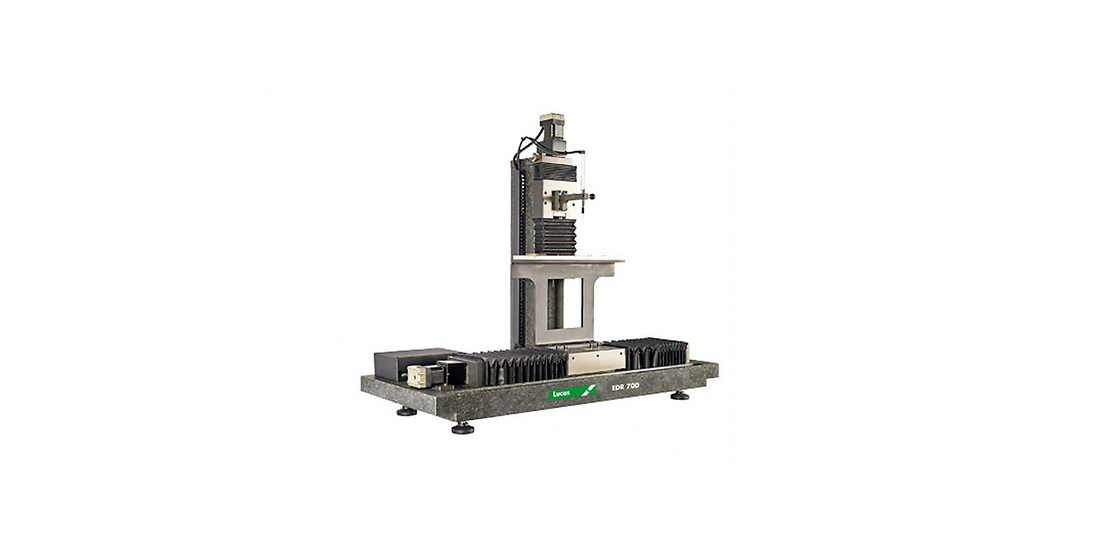

The technological design of the EDR 700 calibration robot enables precise automatic adjustment of any BOSCH, VDO, DENSO and CAT Common Rail injector.
Thanks to the ongoing development of new configuration records for all of the systems and the generation of new accessories, the EDR 700 is equipped to meet any market requirements.
1 EQUIPMENT COMPOSITION
EDR 700 - LDFT0010
EQUIPMENT
REF.
|
SIMULATOR JOYSTICK |
|
|
LDFT1126 |
AIR PRESSURE REGULATOR FILTER |
| LDFT1127 | ADAPTOR EXHIBITOR |
| LDFT1128 | CALIBRATION ADAPTOR (KD-022) |
| LDFT1129 | APP FOR BOSCH CRI & CRIN INJECTORS |
| LDFT1130 | PC USB CONNECTION CABLE |
| LDFT1131 | POWER SUPPLY CABLE |
| LDFT1151 | SOFTWARE |
ACCESSORIES
REF.
|
LDFT1198 |
EDR 700 MULTIPLE MEASUREMENT KIT |
|
LDFT0376 |
SIEMENS INJECTORS APP |
| LDFT0375 | DENSO INJECTORS APP |
| LDFT1134 | 6.4/6.6 PERKINS-CAT INJECTORS APP |
| LDFT0379 | CR INJECTORS SPRING GAUGE |
| LDFT0377 | HEUI C7 – C9 CAT – FORD INJECTORS APP |
2 TECHNICAL SPECIFICATIONS
EDR700 - LDFT 0010
DRIVE SYSTEM
| MOTOR | 3 PHASE 200 VAC |
| POWER | 150 kW |
| FREQUENCY | 50/60 Hz |
INFORMATION SYSTEMS
| PRECISION |
|
|
PRESSURE |
Requires 2 bars of air pressure |
| TIME | All measurements in 3 minutes |
| THICKNESS MEASUREMEN |
|
IT SYSTEM
| OPERATING SYSTEM | PC not included |
| SOFTWARE |
|
DIMENSIONS
| HEIGHT | 1,230 mm |
| WIDTH | 1,070 mm |
| DEPTH | 620 mm |
| VOLUME | 0.8 m3 |
| WEIGHT | 185 kg |
| BODY CONSTRUCTION | Granite for maximum stability |
INFORMATION SYSTEMS
| MULTIBRAND | All brands |
|
TEST RECORDS |
|
| UPDATING | Permanent over the internet |
| SOURCES | Original specifications of the automobile manufacturers |
| WORK PROGRAMME |
|
| INFORMATION |
|
APPLICATIONS
- CARS
- LIGHT COMMERCIAL
- HEAVY COMMERCIAL
- AGRICULTURAL
